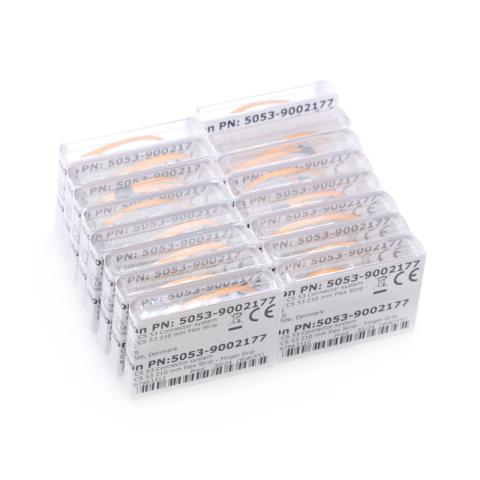

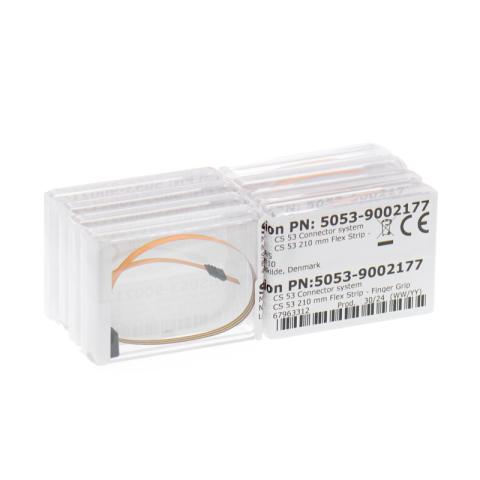

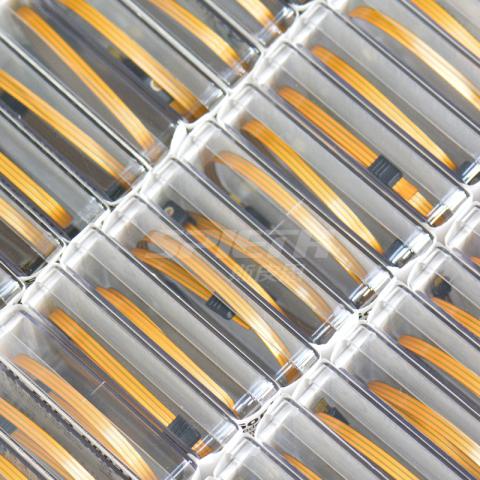

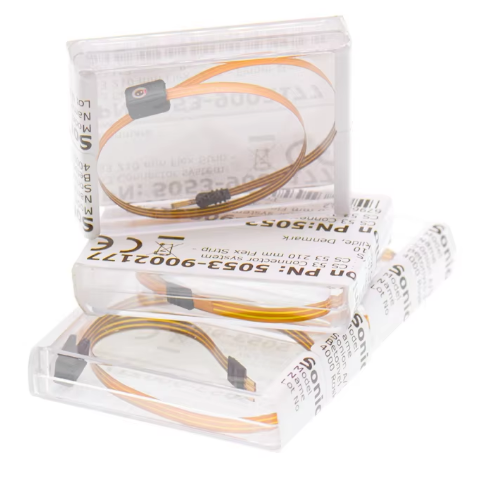

The Sonion CS53 Connector Programming Kit is a specialized auxiliary tool designed for precise hearing aid programming and testing. It ensures stable connectivity and reliable signal transmission, allowing audiologists, hearing aid manufacturers, and service technicians to configure devices quickly and accurately. Ideal for professional use in clinics, labs, and after-sales service centers.
Function: Auxiliary
The kit serves as an auxiliary tool, assisting in programming, firmware updates, testing, and maintenance of hearing Aids. It is not a primary component of the device but is essential for accurate configuration and diagnostic procedures.
Warranty: 1 Year
The 1-year warranty ensures product reliability under normal usage. Customers can expect professional support for any manufacturing defects or operational issues that occur within the warranty period.
Color: PIC
The product color is PIC (as shown in images). This standard presentation ensures consistency with technical and medical environments. Custom color requests may be considered upon inquiry.
Material: ABS
Constructed with durable ABS plastic, the kit offers excellent impact resistance, wear resistance, and lightweight design. This makes it ideal for frequent use in professional settings and easy to maintain or clean.
Applications
Hearing aid programming and testing
Audiologist and technician maintenance
Manufacturer quality control and production testing
After-sales repair and diagnostics
Laboratory and research purposes
Product Benefits
Reliable Connectivity: Ensures stable and secure connections for accurate programming
Durable Design: ABS construction withstands frequent use and handling
Time-Saving: Simplifies programming and testing workflows
Enhanced Performance: Reduces signal interference and errors during configuration
Professional Assurance: 1-year warranty supports confident use in clinical and technical environments
Technical Specifications
Mechanical Specifications
Weight of unit: Min. 3.0 g, Max. 8.0 g
Minimum bending radius of flex: > 1 mm
Tensile strength: Max. 25 N
Torsion of flex: Max. 90° per 15 mm flex
Insertion cycles: Min. 2000 cycles
Electrical Specifications
Contact resistance: Max. 500 mΩ
Current: Max. 150 mA
Peak current: 250 mA for 1 s
Voltage: Max. 50 V
Insulation resistance between leads: Min. 1 mΩ
Material Specifications
RoHS compliance: All materials comply with RoHS directive (2011/65/EU)
Base material: Polyimide
Conductive layer: Cu, rolled annealed
Contact pads: Gold plated
Stop guide: Polymer
Socket: Standard CS 44
Thickness of contact pad area: 0.1025 ±0.0125 mm [0.00404 ±0.00049”]
Thickness of flex strip outside contact pad area: 0.085 ±0.015 mm [0.00335 ±0.00059”]

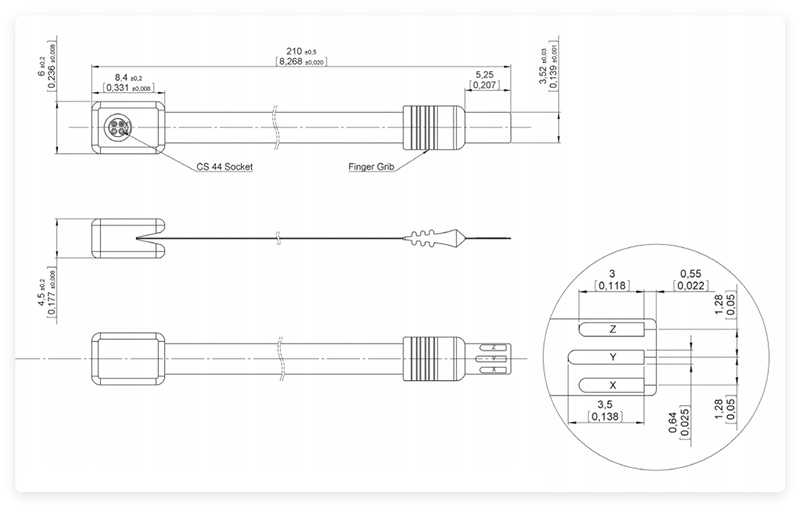

Note: Standard measurement tolerance on the drawings is ±0.05 mm / [0.002”] and ±2°. Any tolerances differing from this value will be indicated on the drawings.
